Elementary Signals Explained Intuitively for GATE ECE (Step, Impulse, Ramp, Sinc)

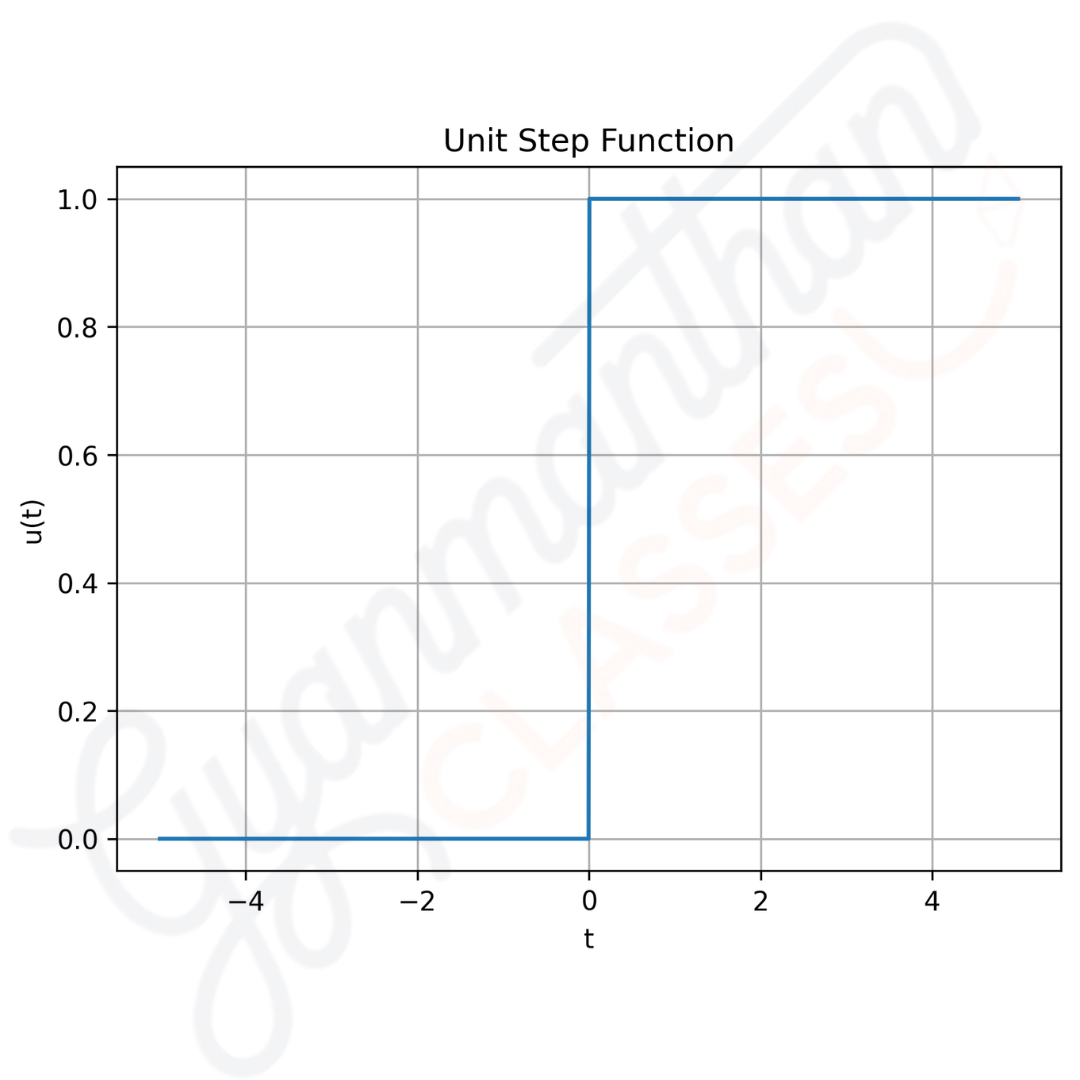

Unit Step Signal – The Switch ON Moment

$$ u(t) = \begin{cases} 0, & t < 0 \\ 1, & t \ge 0 \end{cases} $$

• Represents sudden activation
• Not differentiable at $t=0$
• Foundation for building piecewise signals

Real-Life Insight: When you turn ON a fan, it suddenly starts — that instant is modeled by step.

Deep Insight: Any signal can be broken into shifted step functions → core idea in system analysis.

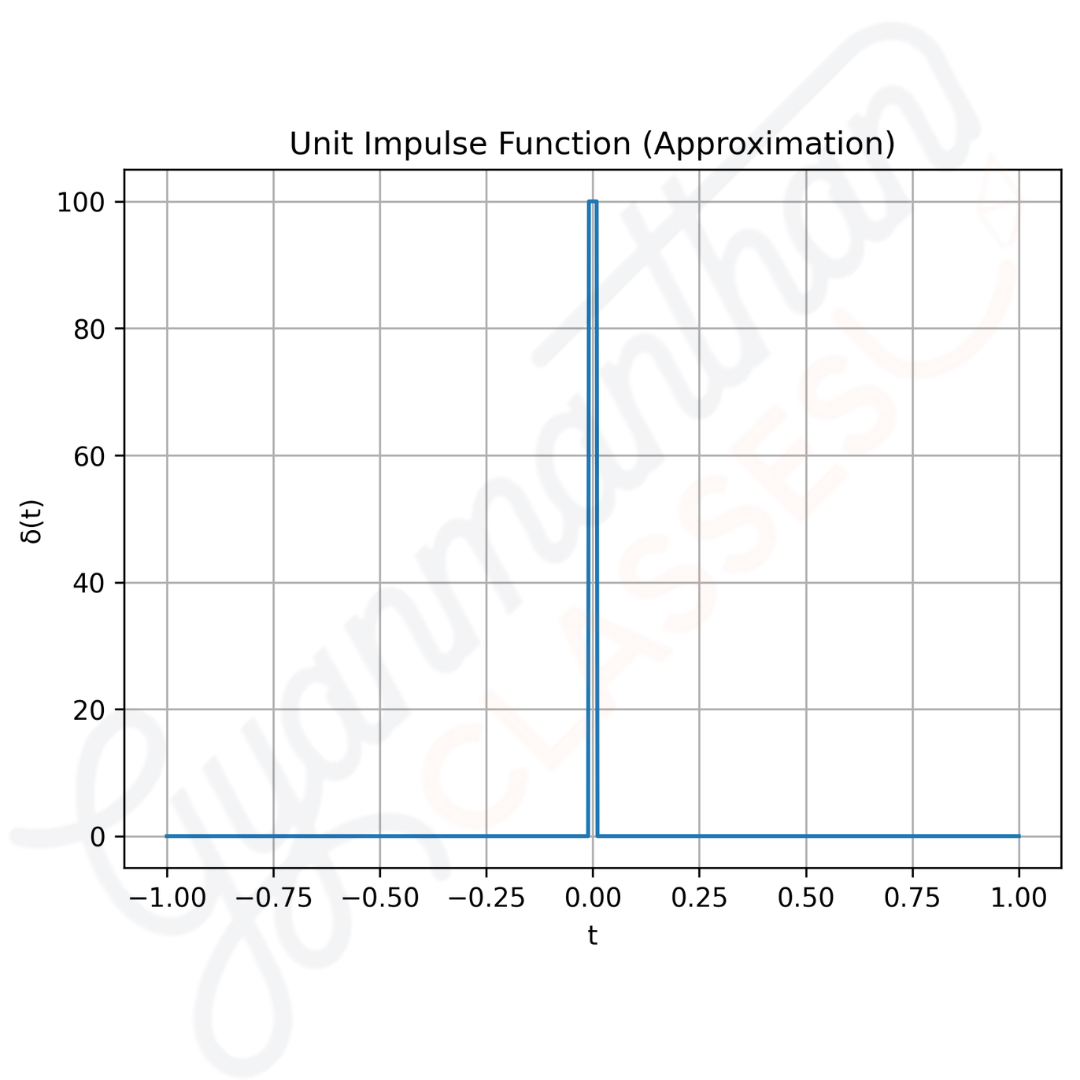

Unit Impulse – The Instant Spike

$$ \delta(t), \quad \int_{-\infty}^{\infty} \delta(t)\,dt = 1 $$

• Exists only at one instant
• Infinite amplitude, finite area
• Key to understanding system response

Real-Life Insight: A sudden clap or shock — happens instantly but has impact.

Deep Insight: Any signal = weighted sum of shifted impulses → foundation of convolution.

Rectangular Signal – Finite Duration Pulse

$$ \text{rect}(t) = \begin{cases} 1, & |t| \le \frac{T}{2} \\ 0, & \text{otherwise} \end{cases} $$

• Represents ON for fixed duration
• Used in digital signals & communication

Real-Life Insight: A signal sent for exactly 2 seconds, then turned OFF.

Deep Insight: Its Fourier Transform gives sinc → time-frequency duality.

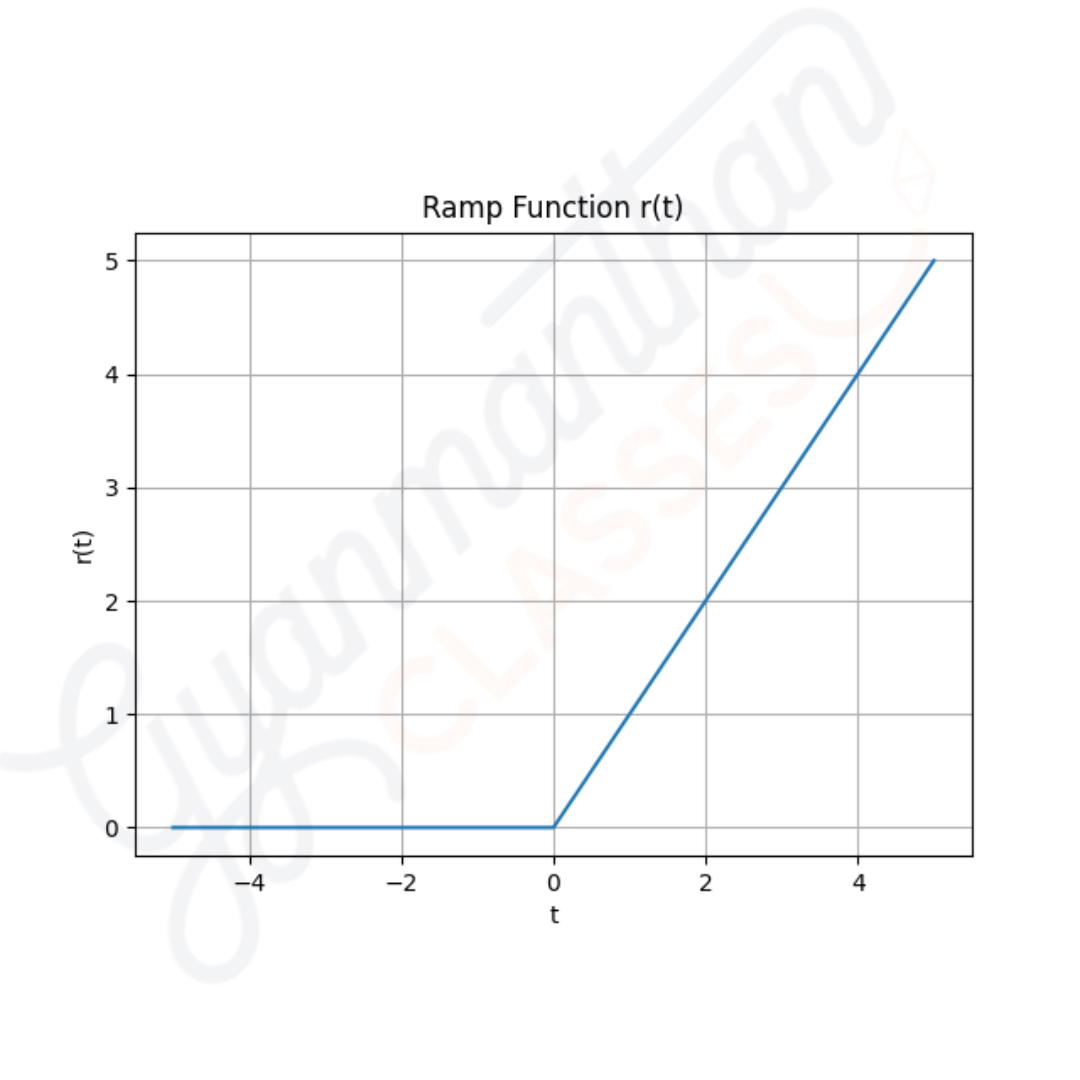

Ramp Signal – Accumulation Over Time

$$ r(t) = \begin{cases} 0, & t < 0 \\ t, & t \ge 0 \end{cases} $$

• Linearly increasing signal
• Integral of step function

Real-Life Insight: Water filling in a tank steadily.

Deep Insight: Represents accumulation → key in energy, charge, and system memory.

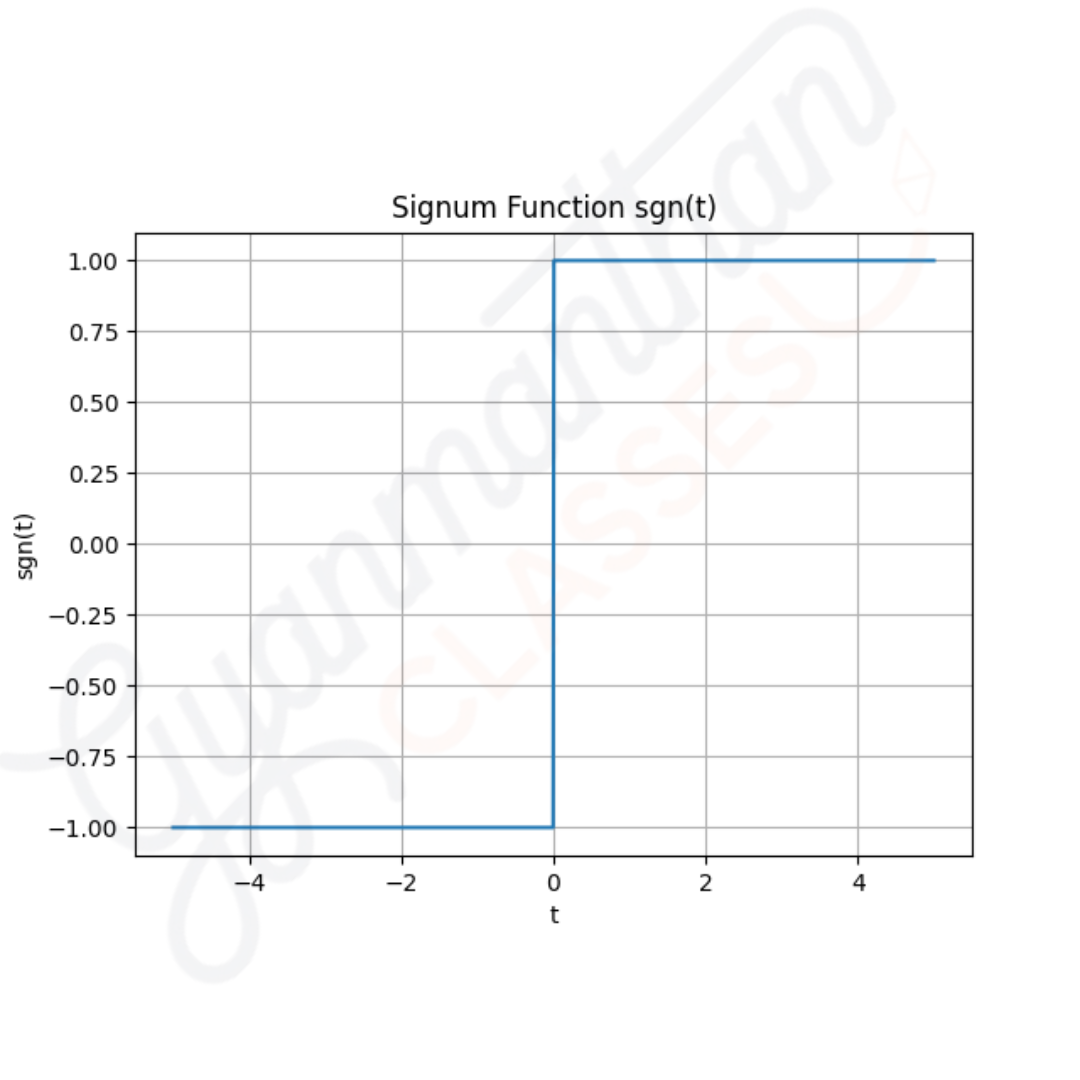

Signum Signal – Direction Indicator

$$ \text{sgn}(t) = \begin{cases} -1, & t < 0 \\ 0, & t = 0 \\ 1, & t > 0 \end{cases} $$

• Indicates sign of signal
• Used in symmetry analysis

Real-Life Insight: Direction of motion: forward (+) or backward (-).

Deep Insight: $$ \text{sgn}(t) = 2u(t) - 1 $$

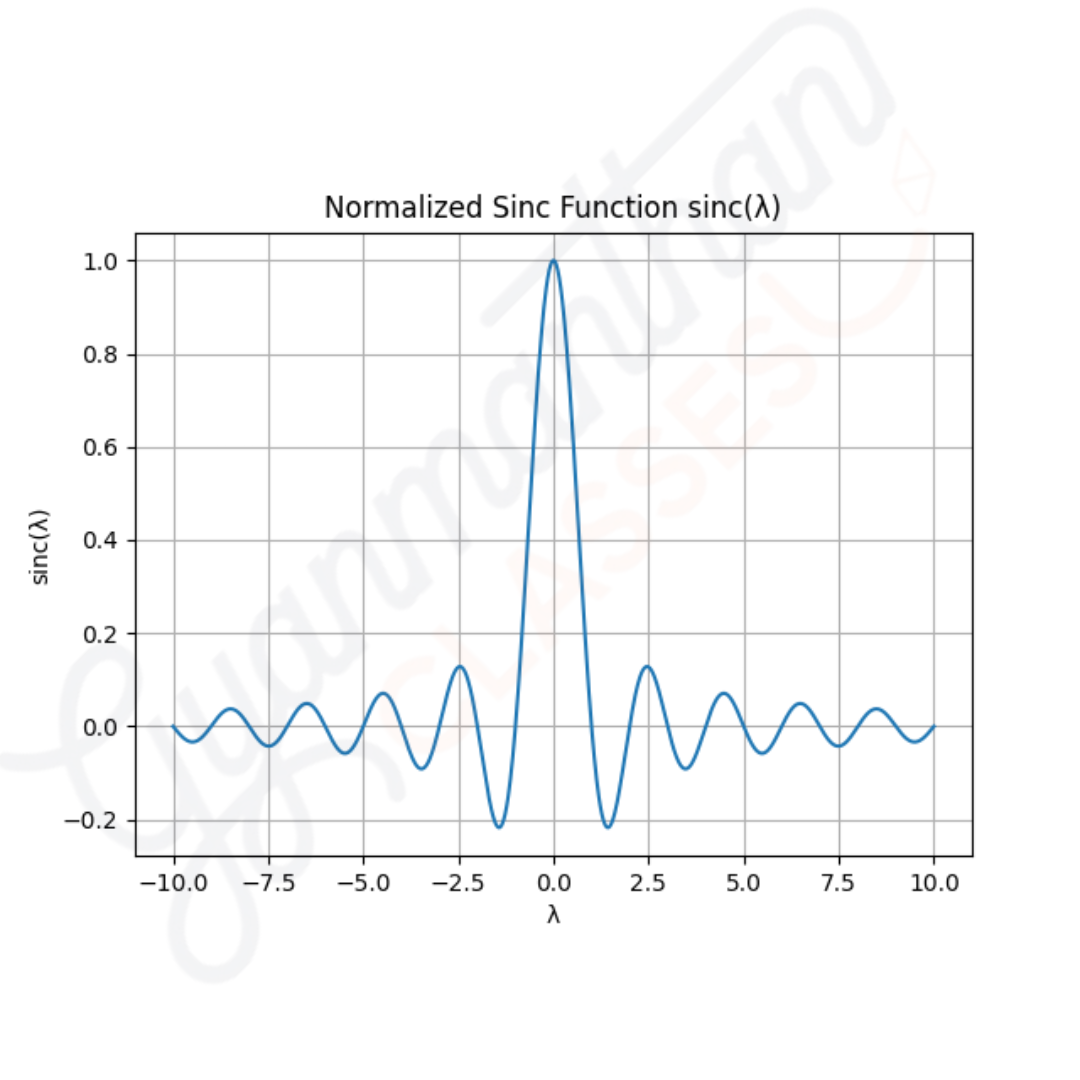

Sinc Signal – The Frequency Master

$$ \text{sinc}(\lambda) = \frac{\sin(\pi \lambda)}{\pi \lambda} $$

• Zero at $\lambda = \pm n,\; n \ne 0$
• Central in signal processing

Real-Life Insight: Appears in bandwidth-limited communication systems.

Deep Insight: Ideal low-pass filter response → impossible physically but critical theoretically.

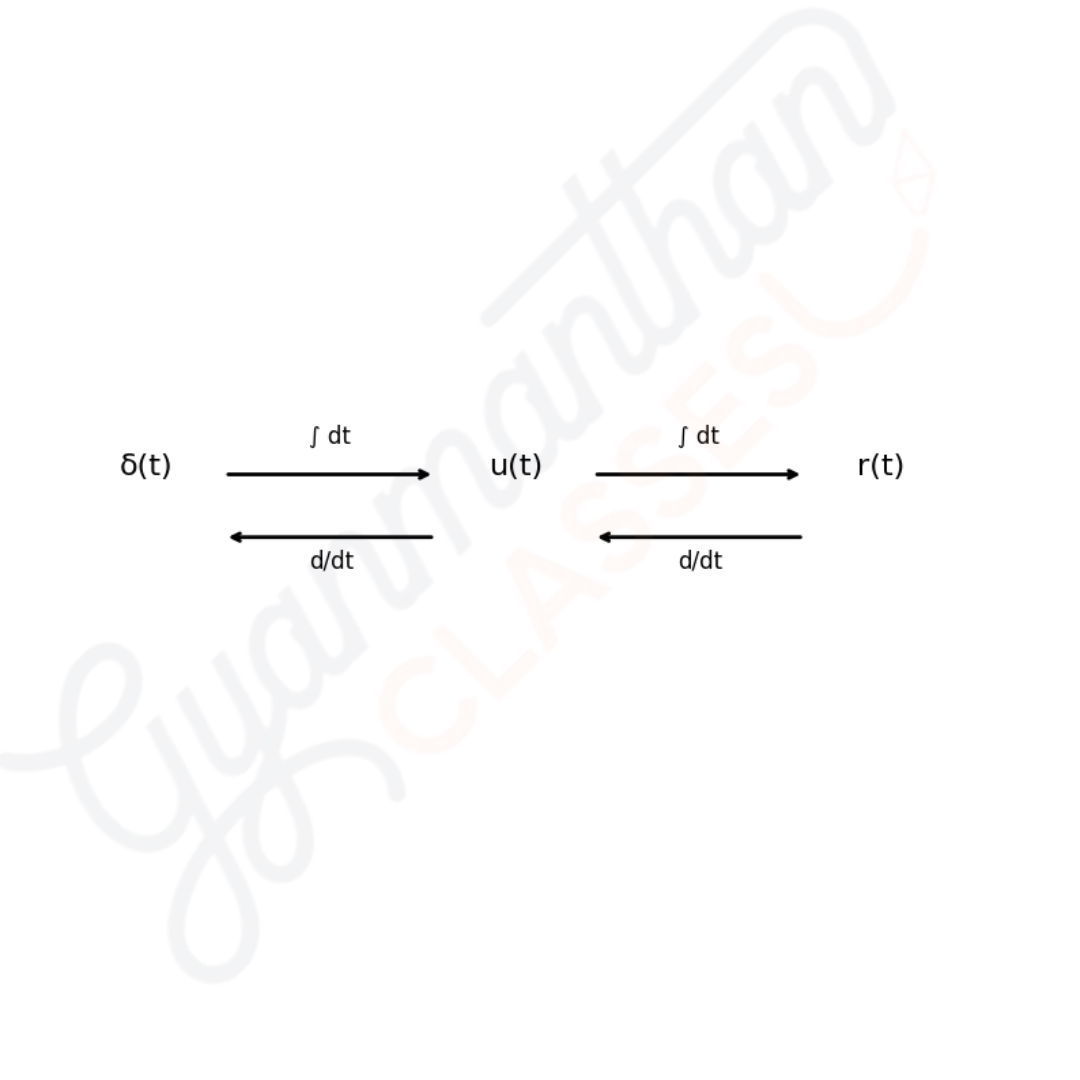

Relationships Between Signals (Core Chain)

$$ \int_{-\infty}^{t} \delta(\tau)\,d\tau = u(t) $$

$$ \frac{d}{dt}u(t) = \delta(t) $$

$$ \int_{0}^{t} u(\tau)\,d\tau = r(t) $$

$$ \frac{d}{dt}r(t) = u(t) $$

• Impulse → Step → Ramp (integration chain)
• Reverse via differentiation

Power Insight: Master this chain → 50% Signals & Systems becomes easy.
